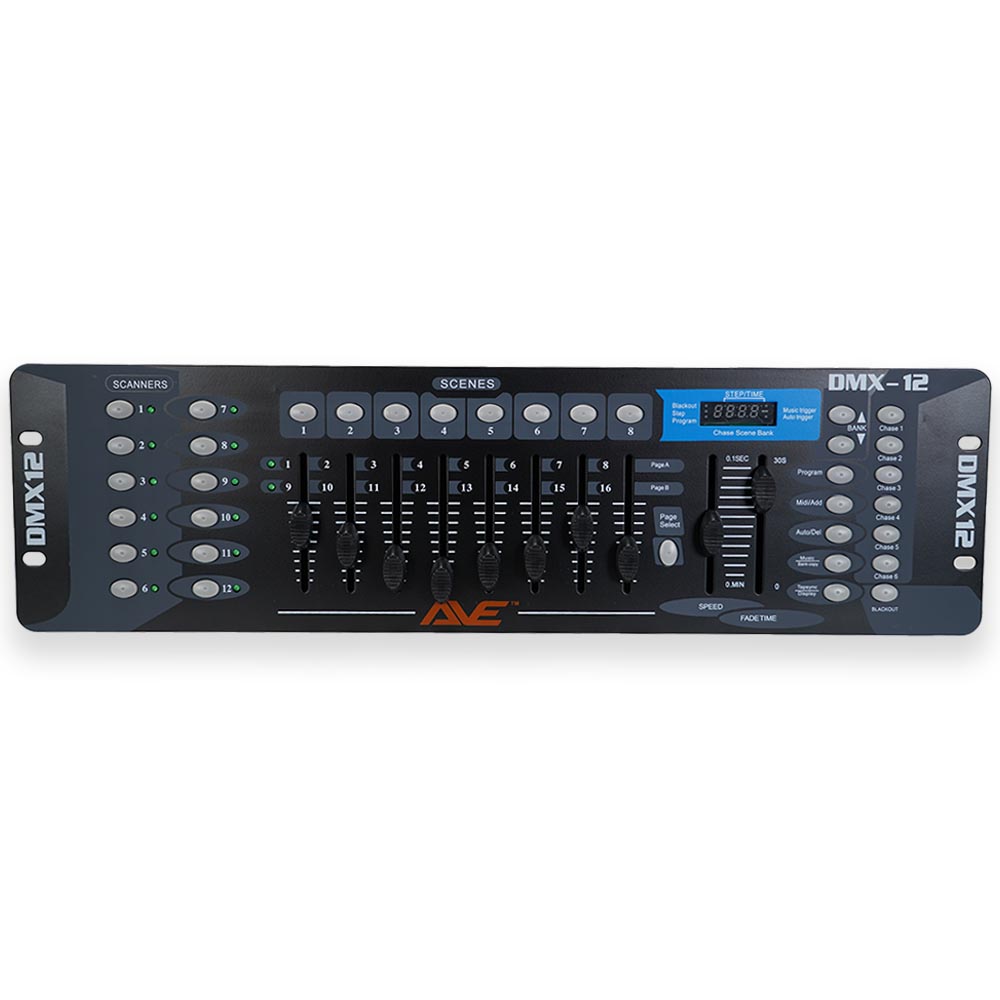

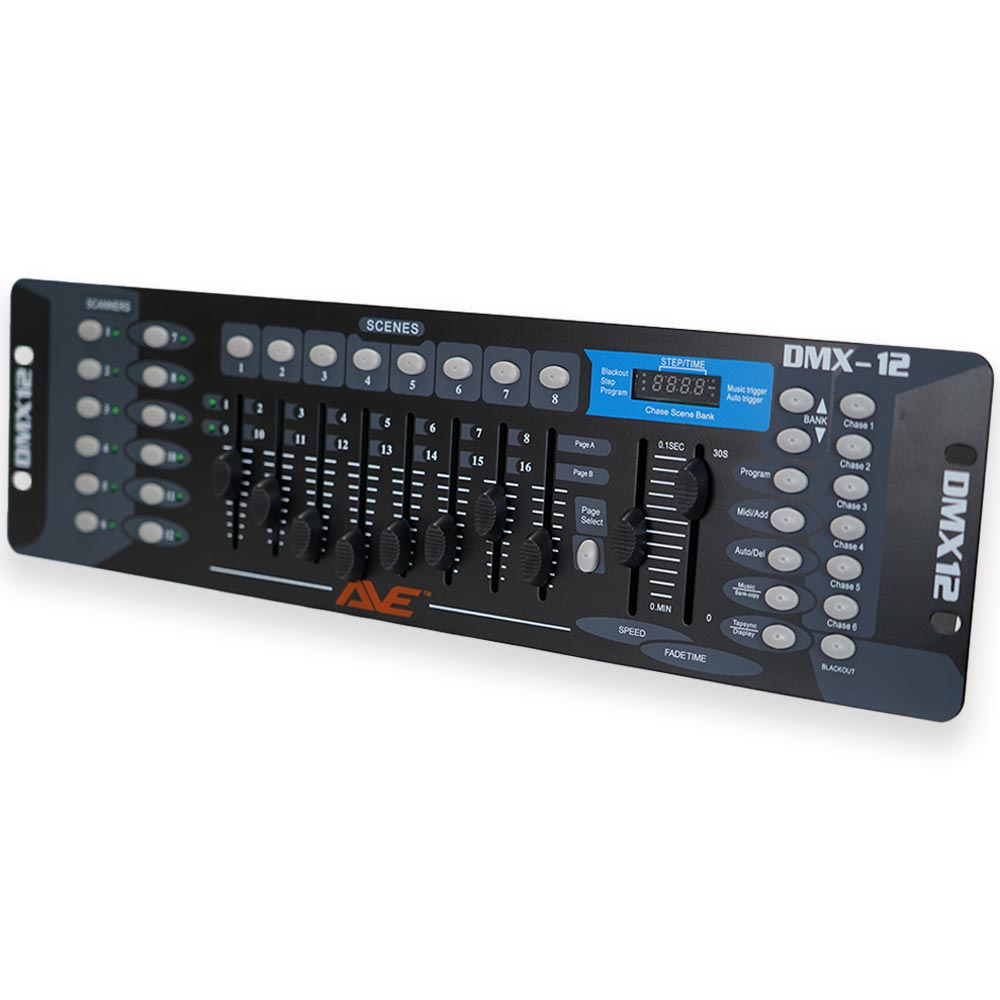

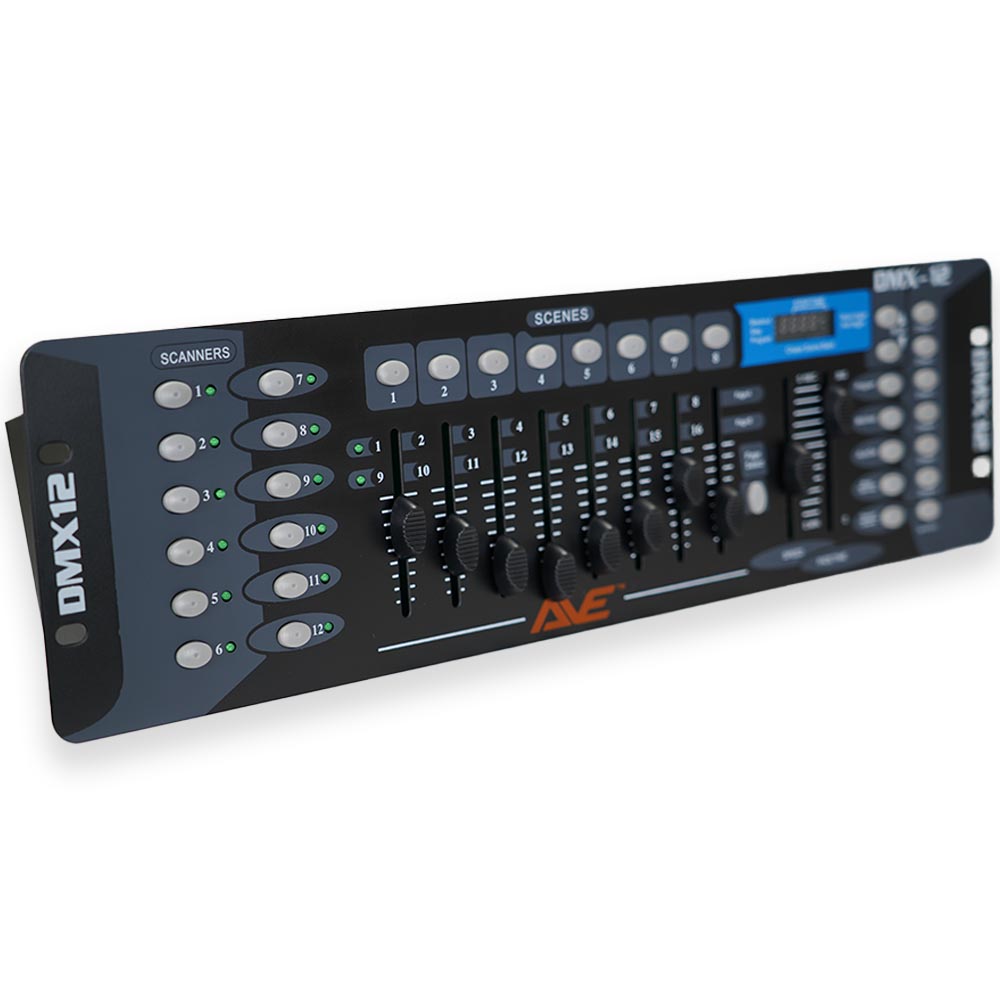

AVE DMX12 Compact 192 Channel DMX Controller

SKU: DMX12 Category:

Key Features:
  • MIDI and sound activation are included
  • DMX-12 is easy to use and versatile
  • Compact feature-packed intelligent lighting controller.
  • Control up to 12 DMX fixtures of up to 16 channels each for a total of 192 output channels
  • 30 banks of scene memory hold up to 240 scenes
  • 6 programmable chase memories
  • LED function and program display
  • Fade and Speed control
  • Built-in microphone for sound-active mode

The DMX12 is a compact 192 channel DMX controller designed to make controlling your lighting fixtures a breeze. Featuring 12 ‘fixture’ groups with 16 channels each (8 faders 2 pages)
This quality AVE product can put you back in control of your lighting setup.

With 12 channels giving you command of all your lighting and atmospheric effects in any combination. The DMX controller is the standard control board used in the industry, designed to control and pre-program intelligent lighting.

Technical Data

DMX output channels: 192
Power Supply: DC 9V
Midi: 5-pin DIN

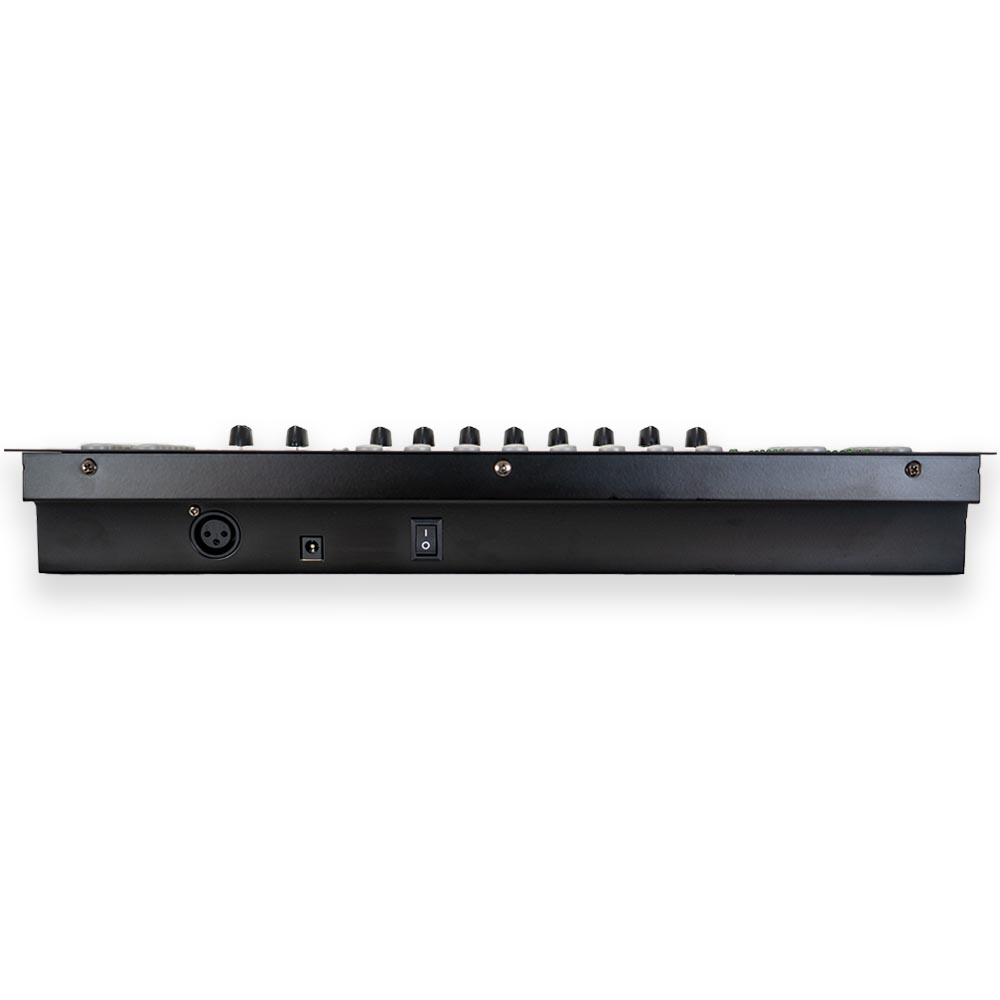

DMX Output: 1 (3-pin XLR female)
Voltage: AC 120/240V 50/60Hz
Dimensions (L x W x H): 516 x 160 x 90mm
Weight: 2.5kg

Related Documents

DMX12 User Manual
