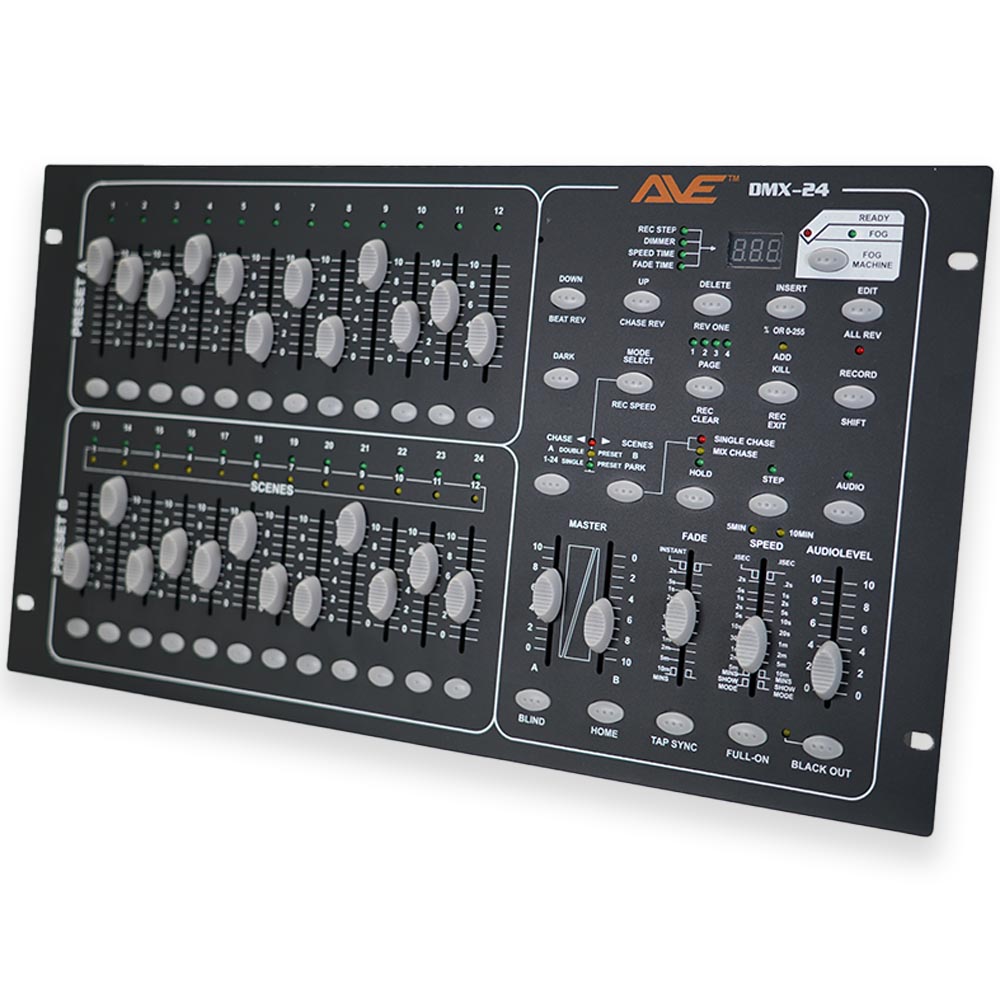

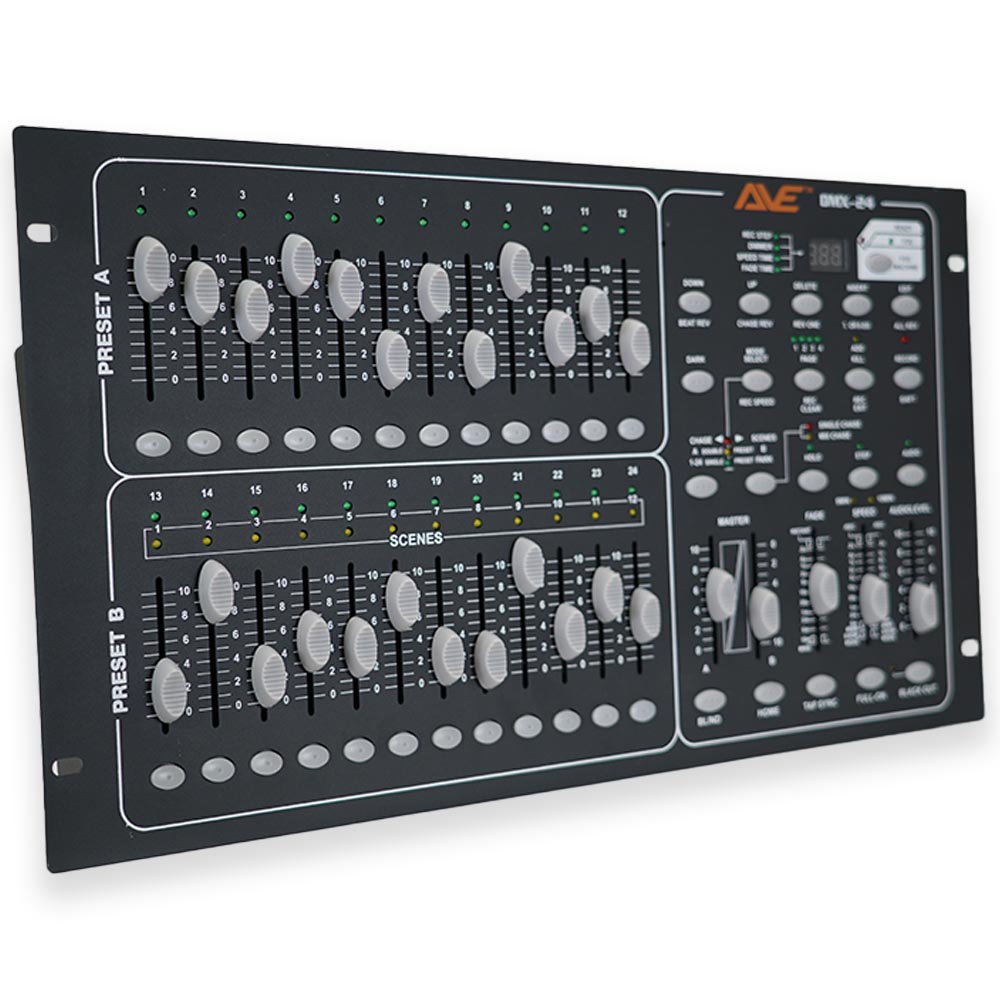

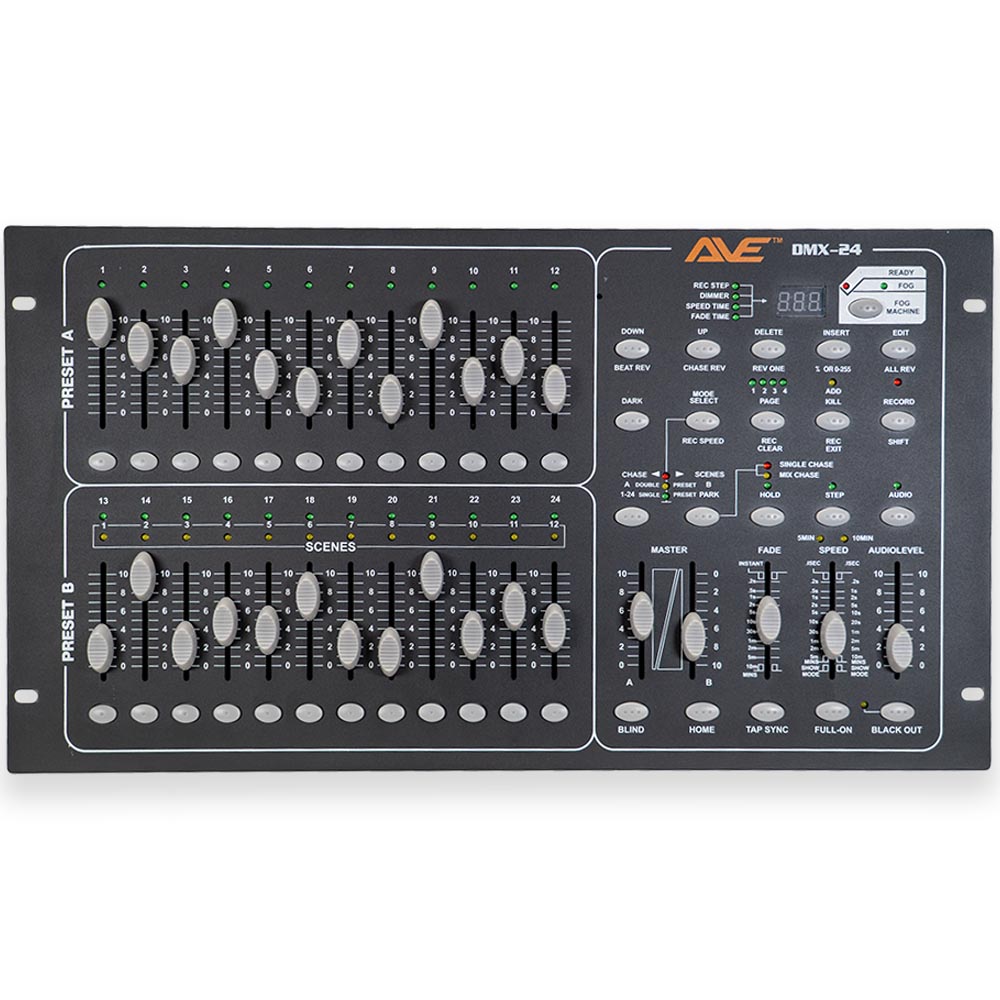

AVE DMX24 DMX Controller

SKU: DMX24 Category:

Key Features:
  • 48-channel DMX-512 dimming console
  • 96 programmable scences (8 groups of 12)
  • 96,000 programmable steps
  • Adjustable chase fade times
  • Re-assignable channels
  • Built-in cross fader, dark and kill buttons

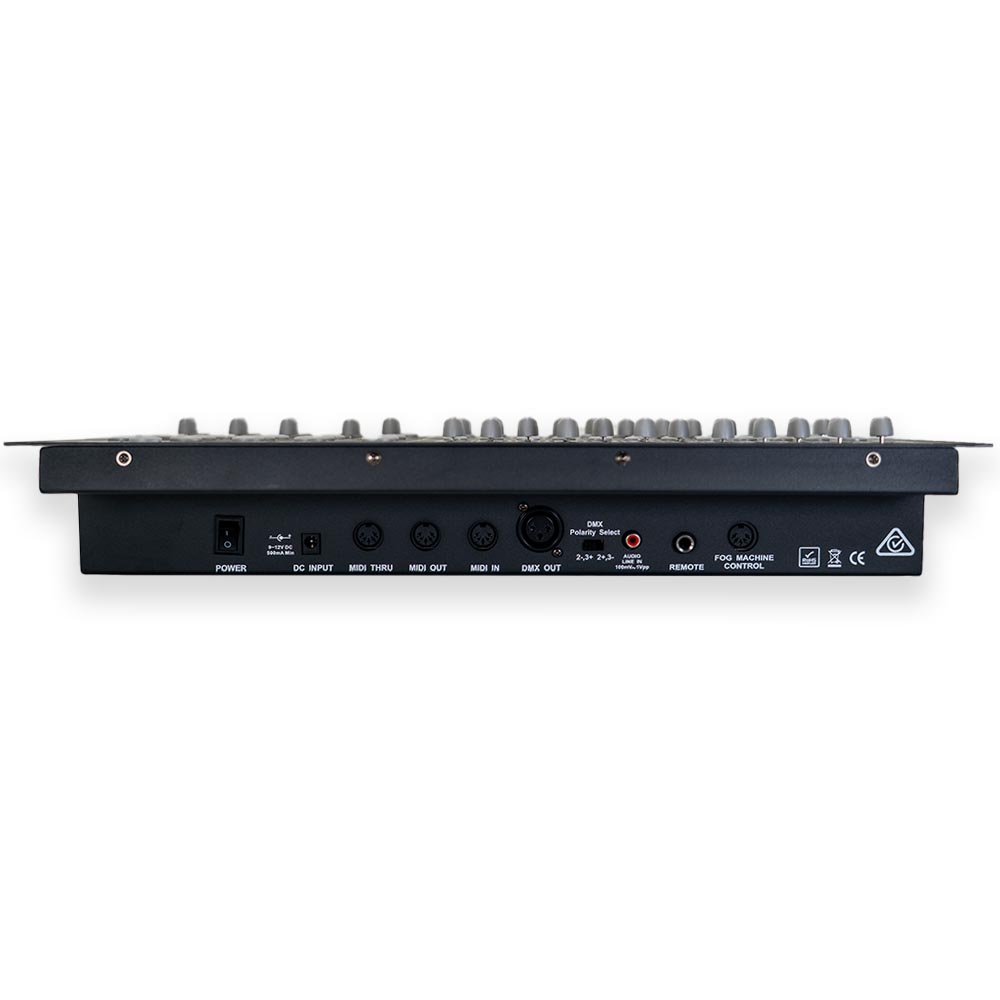

  • MIDI in, out and thru
  • Direct audio input
  • Beat-activation, tap sync, auto run, midi in/out
  • 6-space (6U) rack mount
  • Polarity selector

The DMX24 is a compact and versatile 24-channel DMX controller with the fuctionality and perfornace of a 48 channel dimming unit. Designed to work hamoniously with conventional stage and theatre lights as well as their LED vatients. The DMX24 features an internal memory capable of supporting 96 scenes (8 pages with 12 scenes each) with up to 96,000 programmable steps.

The A/B master faders allow for smooth transitions between scenes for theatres and school auditoriums, while the fade, speed, and audio controls allow youto adjust the chases and create the mood and effect you are wanting.

Technical Data

DMX output channels: 48
Power Supply: DC 12-18V
Midi: 5-pin DIN
DMX Output: 1 (3-pin XLR female)
Voltage: AC 120/240V 50/60Hz
Dimensions: 570 x 390 x 200mm
 Weight: 3.2kg

Related Documents

DMX24 User Manual
