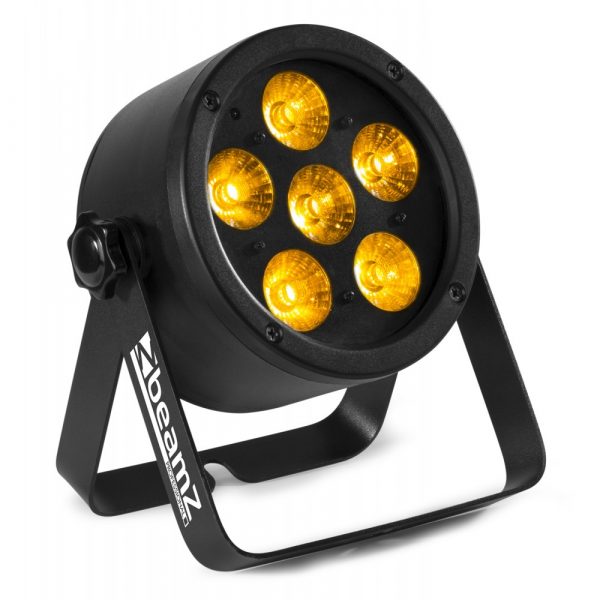

Beamz BAC302 6x12W RGBWA UV DMX



The BeamZ BAC302 is a slimline Aluminium LED ProPar, created by the latest LED technology. It includes 6x 12W 6-in-1 LEDs (RGBAW-UV). Highly efficient, natural convection cooling thanks to the attractive cast aluminium housing with heat sink design. There are no internal cooling fans in these PAR cans, which mean absolutely zero noise. The 4 push button LED menu allows for easy access to the functions including DMX, master/slave, sound activation and the stand alone function. Equipped with IEC in/out and XLR 3-pin in/out for daisy chaining multiple units together.

Specifications

  • 6x 12W 6-in-1 LEDs
  • RGBWA-UV Colour mixing
  • 3, 5, 6 or 11 DMX channels
  • Lightweight housing
  • DMX and Stand-alone mode
  • 0-100% Electronic Dimmer
  • Master/Slave function
  • IR remote control
  • DMX in/output via 3-pin
  • Pre programmed shows
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • Control panel with LED display
  • IEC connector input/output

Technical Information

Beam angle 26°
Field angle 50°
No. of colours 6
Colours RGBWA-UV
No. of LEDs 6x 12W
Flash rate per second 1-24Hz
DMX channels 3, 5, 6 or 11
DMX connection 3-pin XLR
Mode DMX, Auto, Sound active, Master-Slave and IRC
Connector Powerconnector input/output
Power supply 110-240VAC, 50-60Hz, 0.3-0.1A
Display LED
Dimensions 200 x 200 x 83mm
Weight 1.3kg
