Beamz Pro LMB1040IP Outdoor Moving LED Bar with Zoom

SKU: LMB1040IP Categories: ,
Beamz Logo

Key Features:
  • High Performance Outdoor Moving Bar with Zoom
  • Source: 10x 40W 4-in-1 LEDs
  • Single pixel control
  • Effect: Beam/Wash with RGBW Colour mixing
  • Tilt movement: 240°
  • Motorized zoom  (3° – 37°)
  • Linear dimmer: 0-100%
  • DMX and Stand-alone mode
  • Master/slave function
  • Auto mode with adjustable speed
  • Control panel with LCD display
  • Efficient low noise fan cooling system
  • DMX in/output via 3/5-pin IP65 XLR
  • P-Con TR input/output

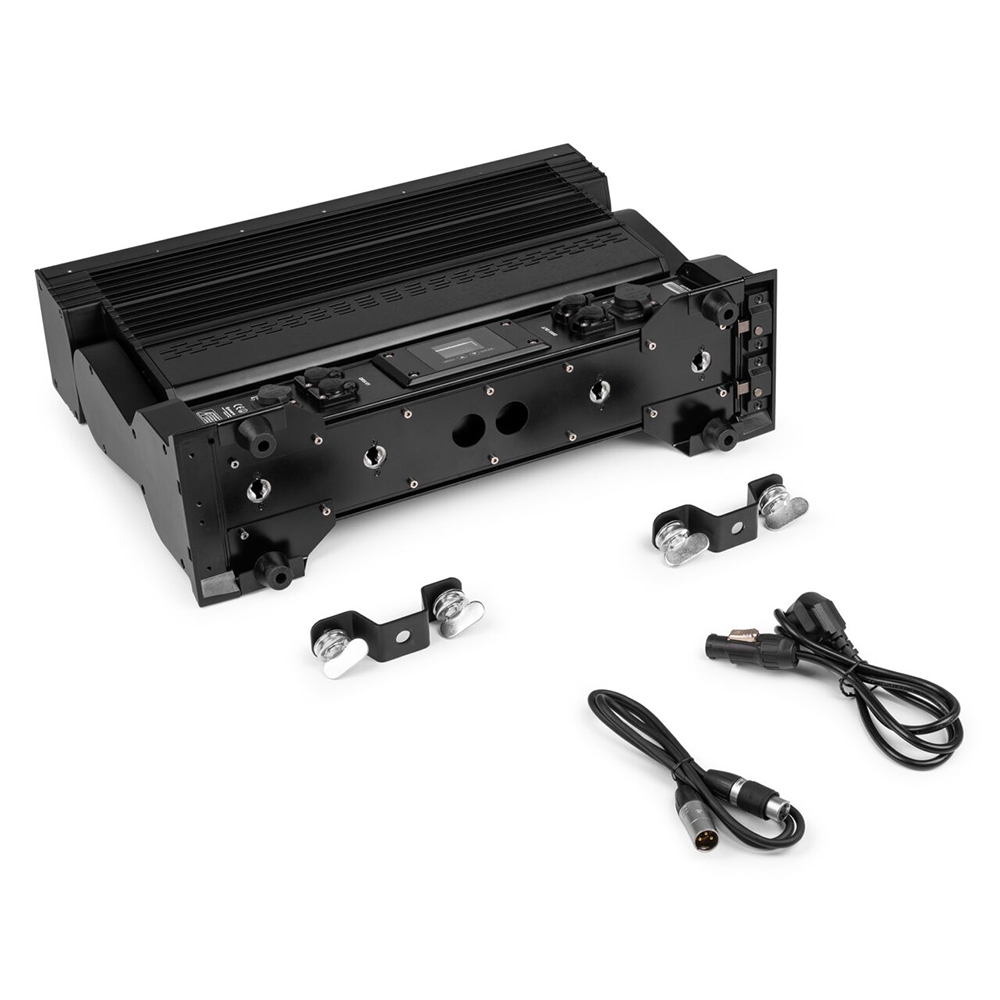

  • Including Omega brackets

The LMB1040 is a high-performance weatherproof LED bar that produces a powerful zoomable range of movable light via its ten RGBW 4-in-1 40W high-quality LEDs. Each pixel can be controlled individually, and the light output can be easily converted into dynamic bundles full of numerous beams. This bright, moving pixel bar features a zoom range of 3º to 37º, a linear dimmer from 0 to 100%, an electronic strobe and a variable colour temperature from 2,700 K to 8,000 K. The fixture can be used on the ground or can be quickly and easily hung from a truss with the supplied Omega brackets.



Technical Data

Product Colour: Black
Light Source: 4-in-1 LED
LED Colours: Red, Green, Blue, White
LED Power (Single LED): 40W
Colour Temperature: 2700K – 8000K
Quantity of LEDs: 10
Beam Angle: Min: 3°

Max: 37°

Field Angle: Min: 6°

Max: 59°

Illuminance: 20.666 lx @ 1m
Flash Rate per Second: 1 – 24Hz
DMX Channels: 19, 28, 29, 33, 34, 48, 49
DMX Connection: 5-pin XLR
Modes: Automatic programs, DMX, Master/Slave
IP Rating: IP65
Cooling: Temperature controlled fan
Display: LCD
Power Plug: Power-connector TR
Power Consumption: 2.98 – 1.40A
Power Supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 536 x 159 x 398mm
Weight: 17.95 kg
