Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors. The USB-C connector lets you copy, backup and transfer show files while a standard 3.5mm headphone jack connects to external audio systems for amplified playback. Keep your creations safe and secure with password protection. DMX-RT4 also supplies DC voltage through the terminal block to power specific triggers.

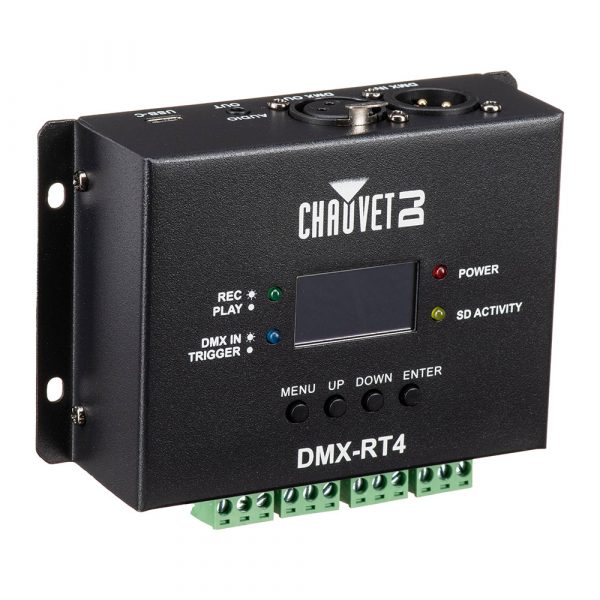

Chauvet DJ DMX-RT4 DMX Recorder
Key Features:
- DMX recording and playback device with 4 independent triggers
- Each trigger can be programmed and triggered separately
- Copy, backup and transfer show files using the USB-C connector
- Standard headphone connector (3.5mm) connects to external audio systems for amplified playback
- Password protection ensures shows will not be altered
- Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors
- Supplies DC voltage through terminal block to power specific triggers
Technical Data
| DMX Connector: | 3-pin XLR |
|---|---|
| Input Voltage: | 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz) |
| Power and Current: | 1 W, 0.03 A @ 230 V, 50 Hz |
| Weight: | 0.2 kg |
| Size: | 122 x 81 x 38 mm |
| Approvals: | CE, UKCA, RoHS |
| Compatible audio formats: | MP3 (32-320kbps), WAV (8 or 16bit only) |
| Onboard memory: | 32 GB |
| Filename max length (MP3/WAV): | 12 characters |
| Filename max length (show file): | Â 11 characters |
| Trigger Type: | auto, toggle, N/O or N/C |
| Terminal Block output: | Â 12 VDC, 100 mA |
