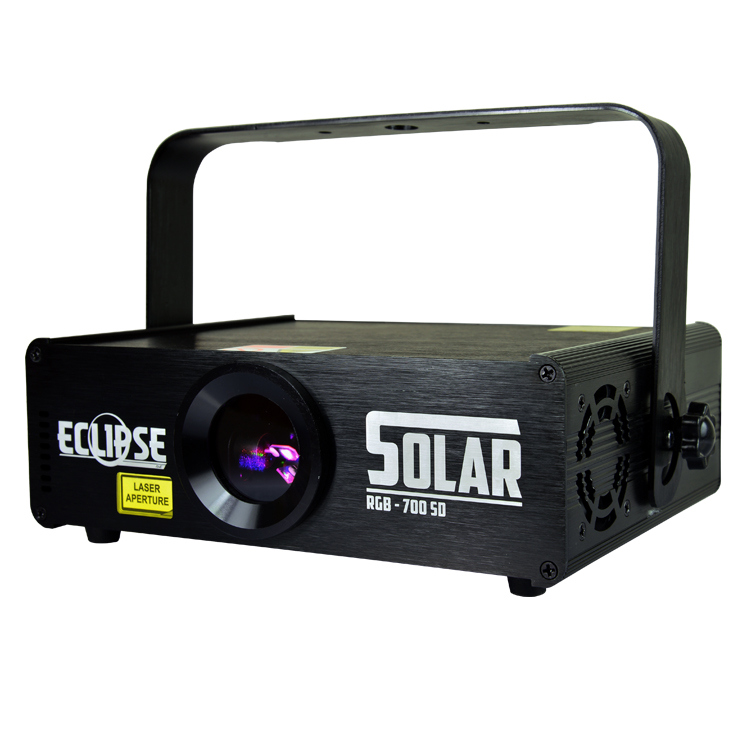

Eclipse Solar 700-SD RGB Animation Laser



The Solar 700SD is a compact 700mW laser that allows you to connect and create amazing laser shows with ILDA or via the on board SD card reader, or plug and play with a huge range of  built-in programs and patterns for both Auto and Sound active modes. Designed to give you the most flexibility for your shows with a host of control inputs and options including a high quality SD card reader for loading and playing pre-programmed laser shows. And delivering an impressive 700mW combine RGB output with qulaity high speed steppers that create smooth and vivid patterns. A must have for any venue, club, DJ, or band wanting to add a WOW factor to their setups.



Specifications

  • Laser Powers 700mW RGB
  • Over 200 Patterns & Animations
  • Sound Activated
  • Stand Alone Auto
  • DMX & ILDA Compatible
  • Sound Sensitive Adjustment
  • Heavy Duty Mounting Yoke
  • Built in SD Card Reader for custom laser shows
  • Supplied with a 4GB SD Card

Technical Information

Type: RGB Laser System
Laser Class: 4A
Maximum Output: 700mW
Scanner Speed: 20kpps @ 8°
Modulation: TTL
RGB Module: Red- 638nm
Green- 532nm
Blue- 520nm
ILDA Connection: 25-pin ILDA cable
DMX Channels: 9
Power Supply: 240V AC / 50Hz
Dimensions: 150 x 220 x 180 mm
Weight: 1.6 kg
