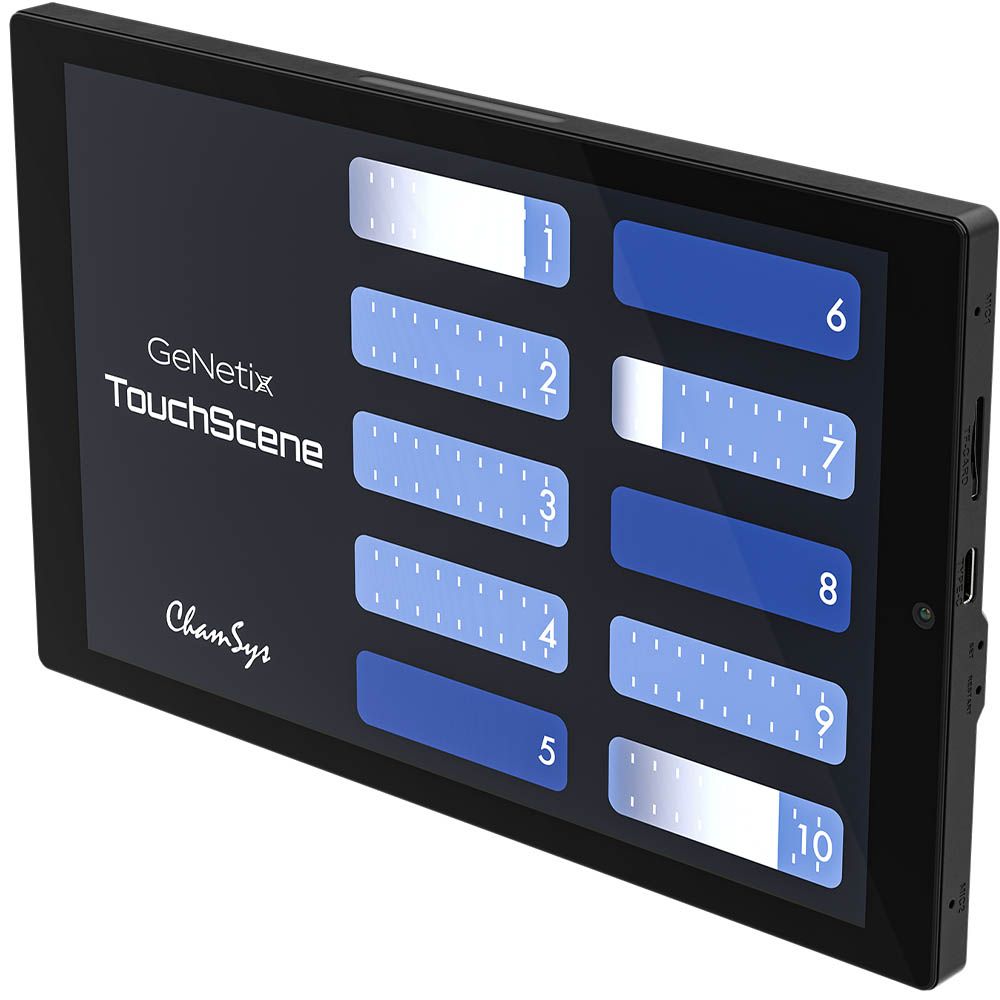

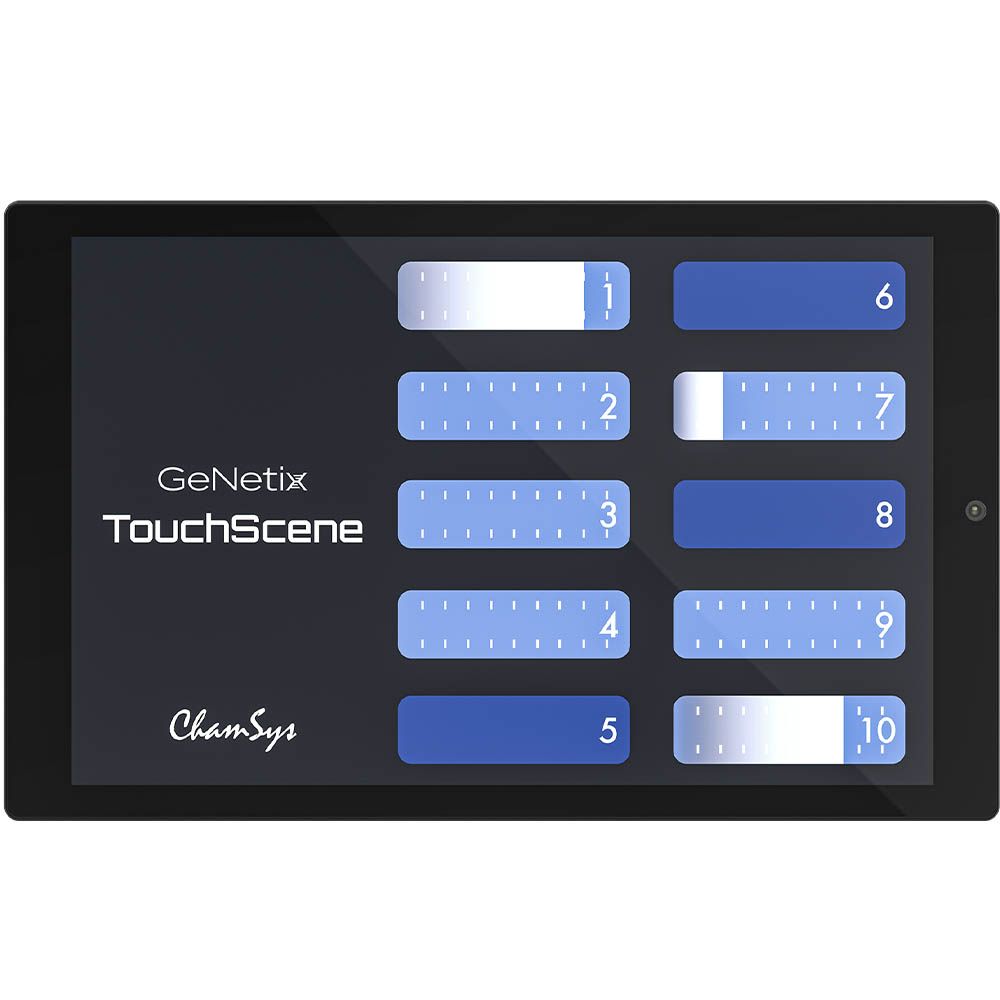

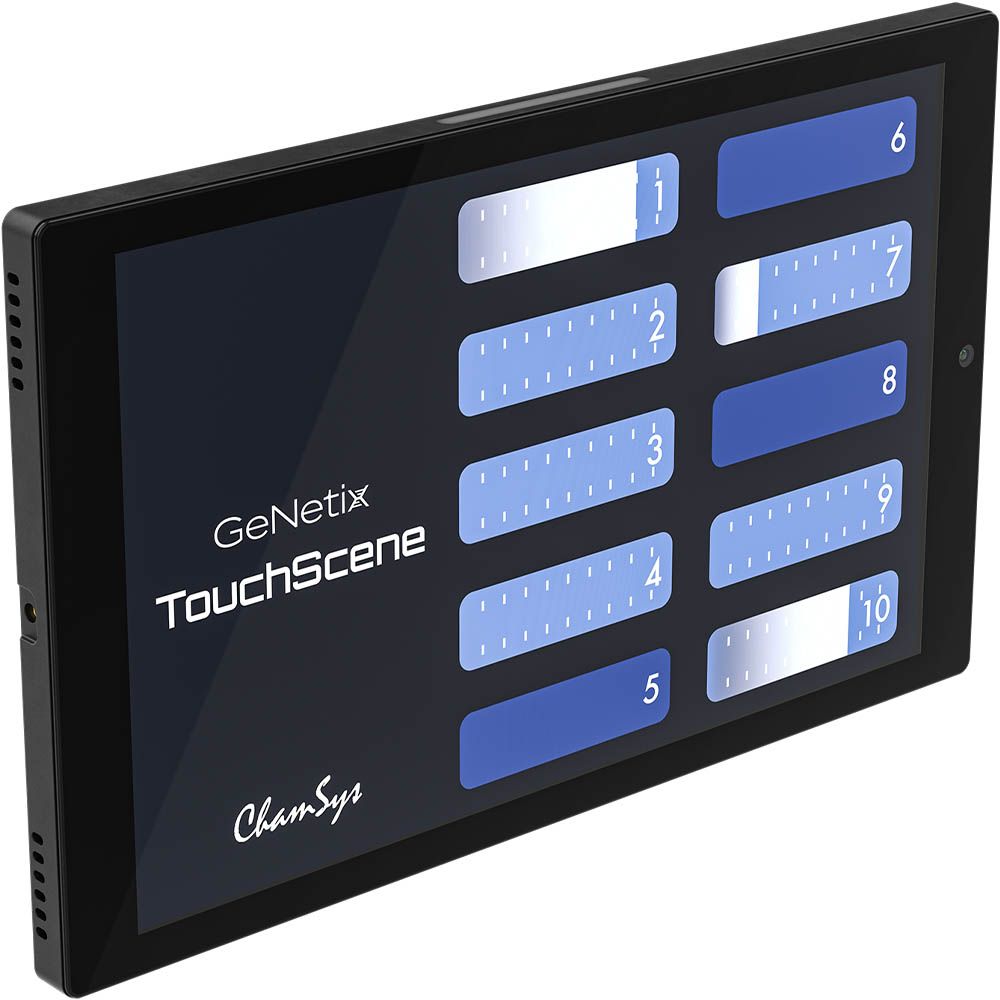

GeNetix TouchScene Wall Controller

SKU: TOUCHSCENE Category: Tag

Key Features:
  • Sleek 8″ touch screen panel
  • Customisable screen saver for installations
  • Connects to either MagicQ systems, QuickQ consoles or GeNetix nodes
  • PoE powered (48V)
  • Features selectable in-built layouts
  • Customisable layouts when connected to either MagicQ or QuickQ consoles
  • Supports PIN locking when connected to MagicQ or QuickQ consoles

GeNetix TouchScene elegantly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation.

When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level control is available. Connecting to a MagicQ control system allows for complete interface customisation, including custom icons and images as well as fully customising the items on the display.

Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene includes inbuilt layouts that allow its 8″ touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene is PoE-powered, allowing integrators to easily add remote control to installations using standard Ethernet cable for connectivity.

Technical Data

Type 8″ Touch screen
Supported Zones 50 with MagicQ (Full version)
10 with QuickQ

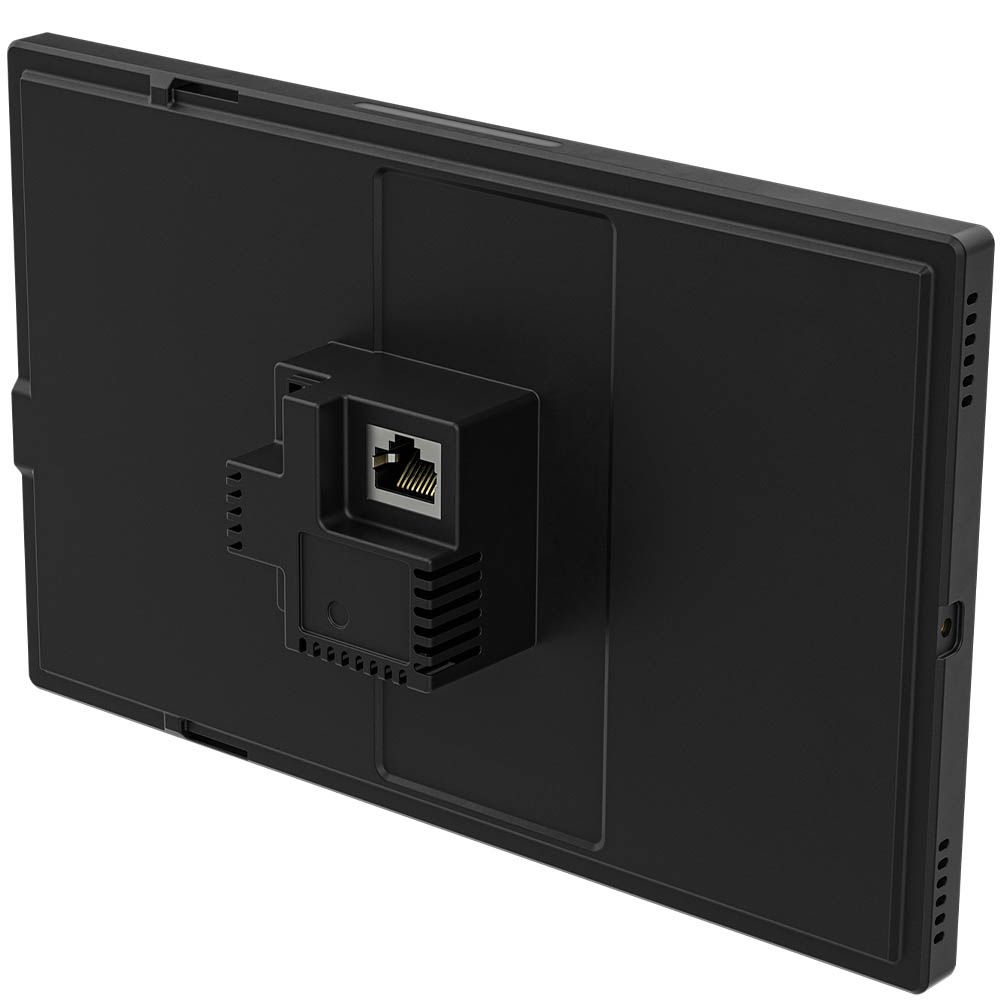

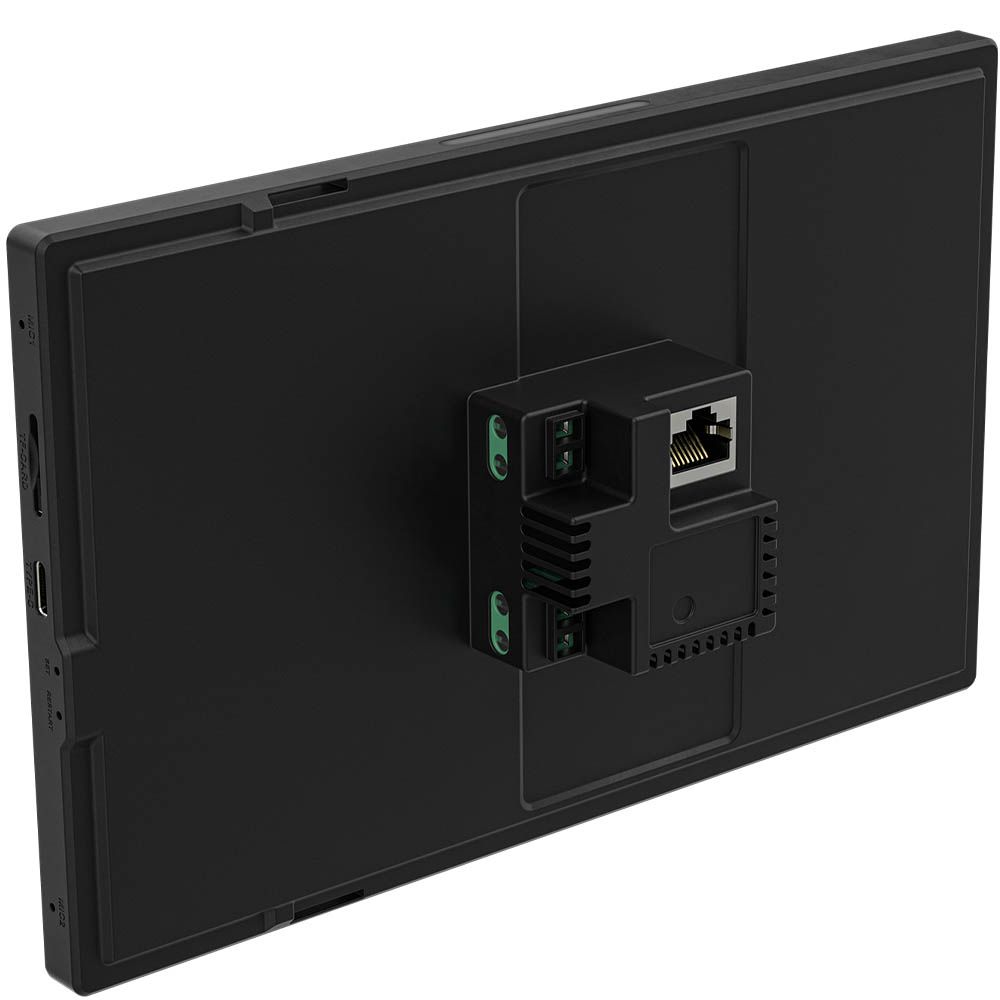

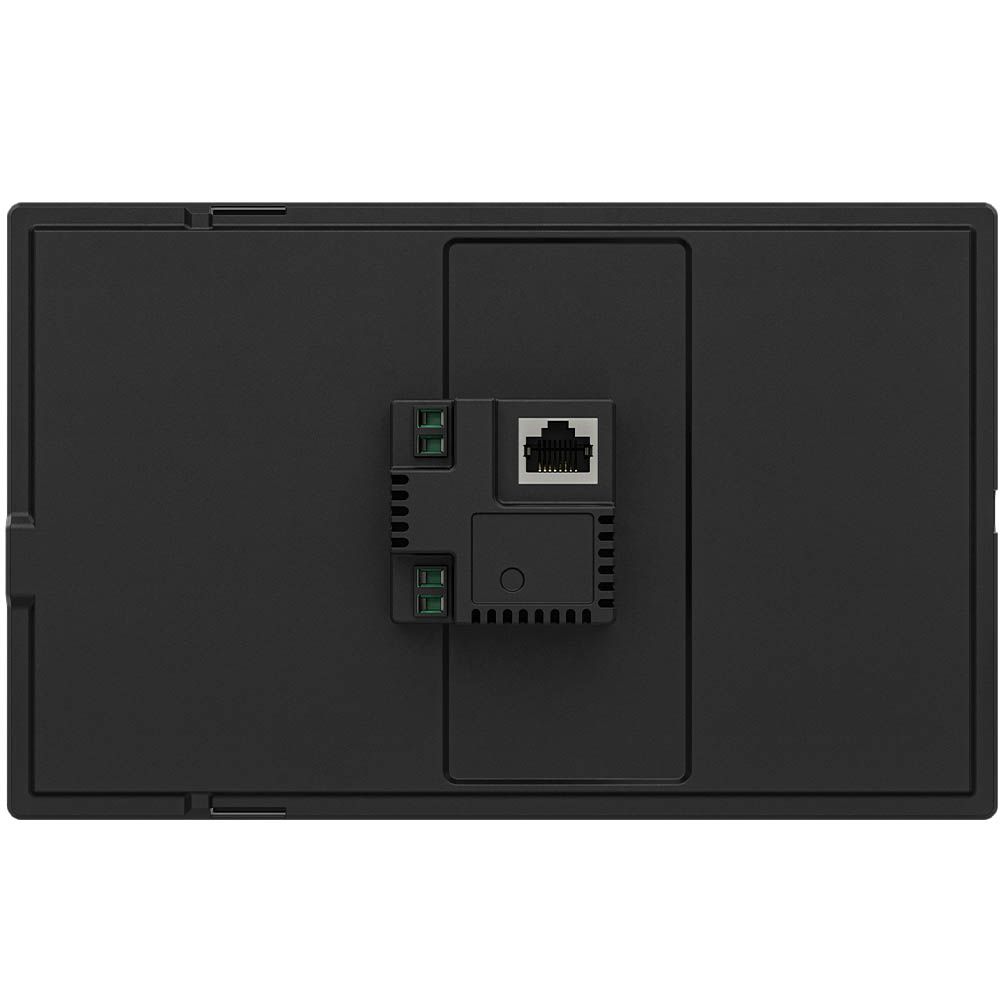

Connections 1x Ethernet port
Power 48V via PoE
Dimensions (WxDxH) 200 x 11.6 (37.7 inc rear connectors) x 124.59 mm
Weight 0.40kg

Related Documents

GeNetix TouchScene Cutsheet
