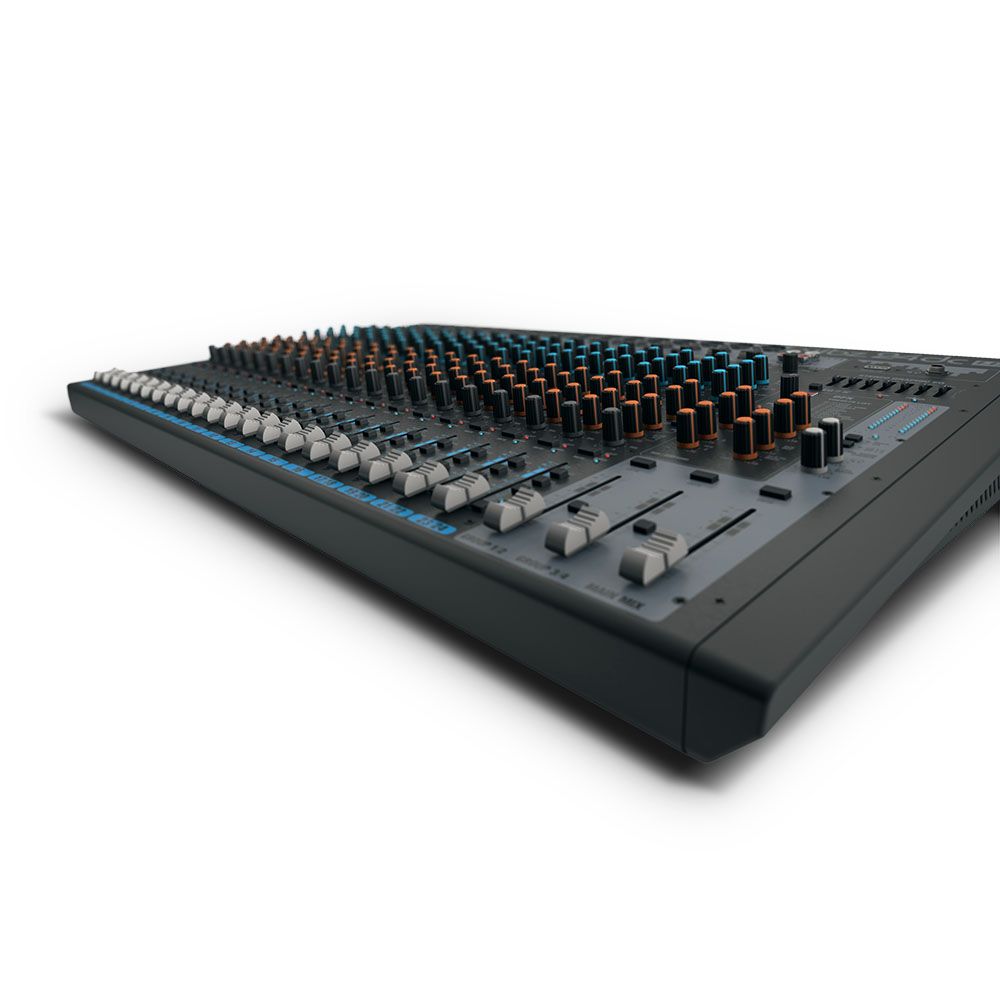

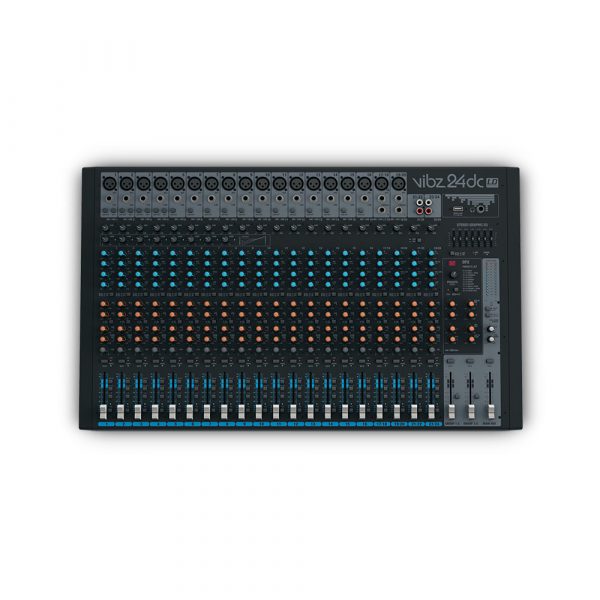

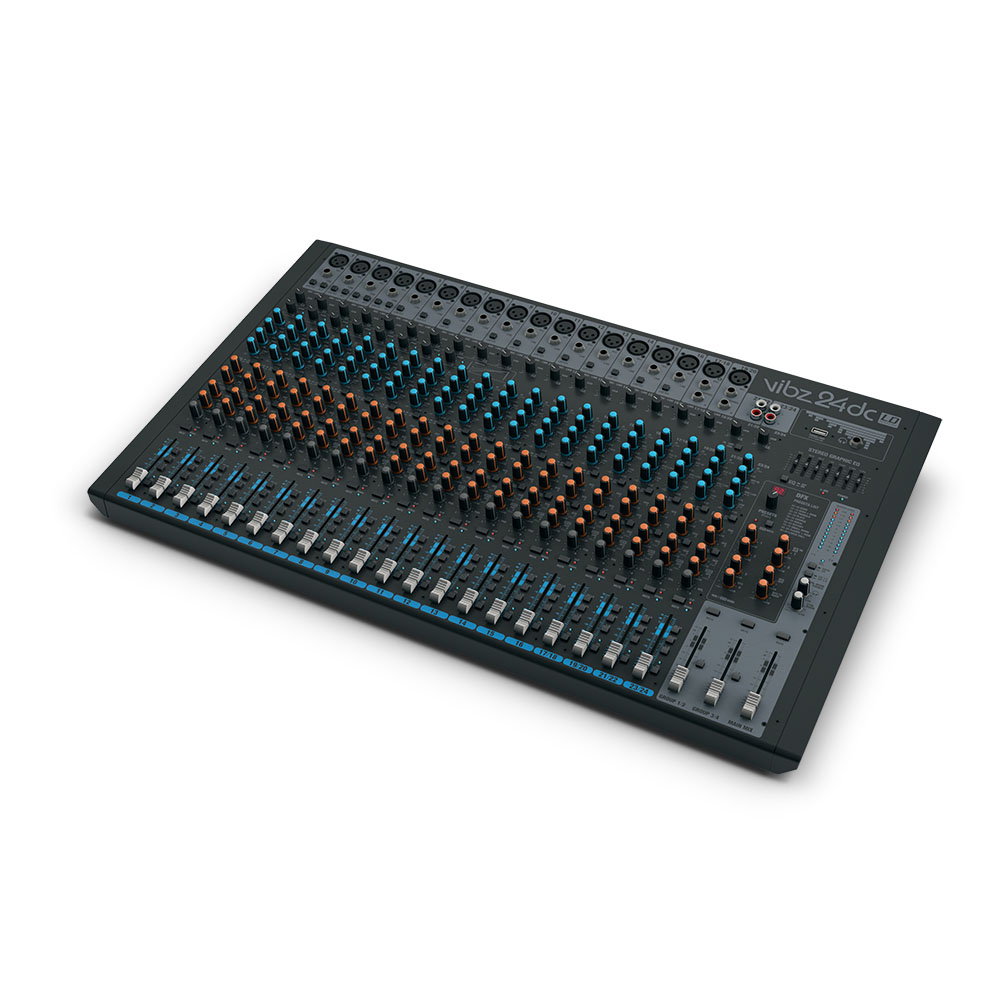

LD Systems Vibz 24 Channel Mixer with DFX and Compressor
The flagship of the VIBZ Series of mixing desks, the VIBZ 24 DC is designed for superb audio in home studio and live applications. It sports 16 mono channels with 3-band EQ and semi-parametric midrange, 4 stereo channels with 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.
All channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Two sends are switchable pre or post fader to enable monitoring or effects use. The mono channels’ XLR mic and TRS line inputs are electronically balanced with channels 1 – 8 providing convenient one-knob control of the built-in compressor and individual insert points for outboard processing.
The master section offers balanced and unbalanced main mix and individual group outputs with precision metering, control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.
Specifications
- 24 Channel mixer with digital effects and DSP
- 16 Premium microphone inputs with adjustable compression on CH 1 – 8
- 4 dedicated stereo channels
- 4 AUX / Effect sends
- 4 Group sends (1+2 / 3+4)
- 1 Stereo FX return
- 3-band EQ per channel, plus 7-band graphic EQ on main output
- Balanced XLR main out and TRS group sends
- Digital effects section with 100 presets
- Designed & engineered in Germany
Technical Information
| Product Number: | LDVIBZ24DC |
|---|---|
| Product Type: | PA Mixer |
| Channels: | 24 |
| Inputs: | 16 Mic / Mono (XLR / 6.3mm TRS) 2 Mic / Stereo (XLR / 6.3mm TRS) 2 Stereo (RCA Stereo pair) 1 Stereo FX Return (6.3mm TS) |
| Outputs: | 2 Main (XLR) 4 AUX / FX Sends (6.3mm TS) 4 Group Out (6.3mm TRS) 2 Stereo Control Room Out (2x 6.3mm TRS) |
| Other Connectors: | 1 DMX (2x 6.3mm TRS) 1 DFX Footswitch (6.3mm TS) 1 USB (Type B) |
| FX Processor: | Digital multi effects processors |
| FX Presets: | 100 Factory |
| Frequency response: | 10 Hz to 45 kHz |
| THD: | < 0.0045% (MIC) |
| SNR (input): | 116dB |
| EQ Parametric: | High: +/-15 dB / 12.000 Hz MID: +/-15 dB / 2.500 Hz Low: +/-15 dB / 80 Hz |
| EQ Stereo Graphic: | 9-Band |
| Phantom Power: | Yes (switchable) |
| Power supply: | 240Vac / 50Hz |
| Dimensions: | 712 x 80 x 425 mm |
| Weight: | 9.44 kg |
