The PDW8 is a powerful 2-way full-range speaker suitable for a wide range of applications and guarantees room-filling high-fidelity reproduction of music and speech. Engineered with high-quality components, the PDW8 features a 1-inch wide-dispersion titanium dome tweeter, and 8-inch woofer in a bass-reflex enclosure that provides full-range audio to your space. The trapezoidal shape makes this speaker ideal for installation or array mounting in tight locations. Including metal wall mount system.

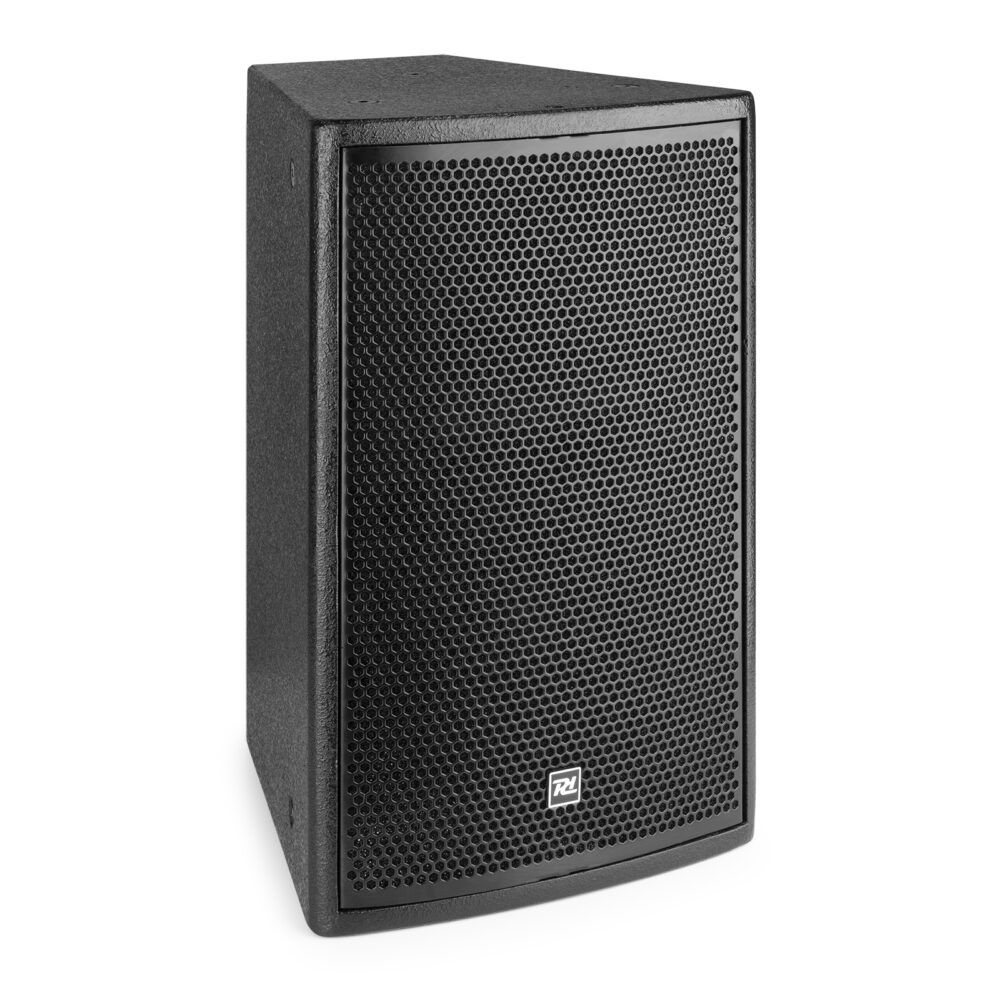

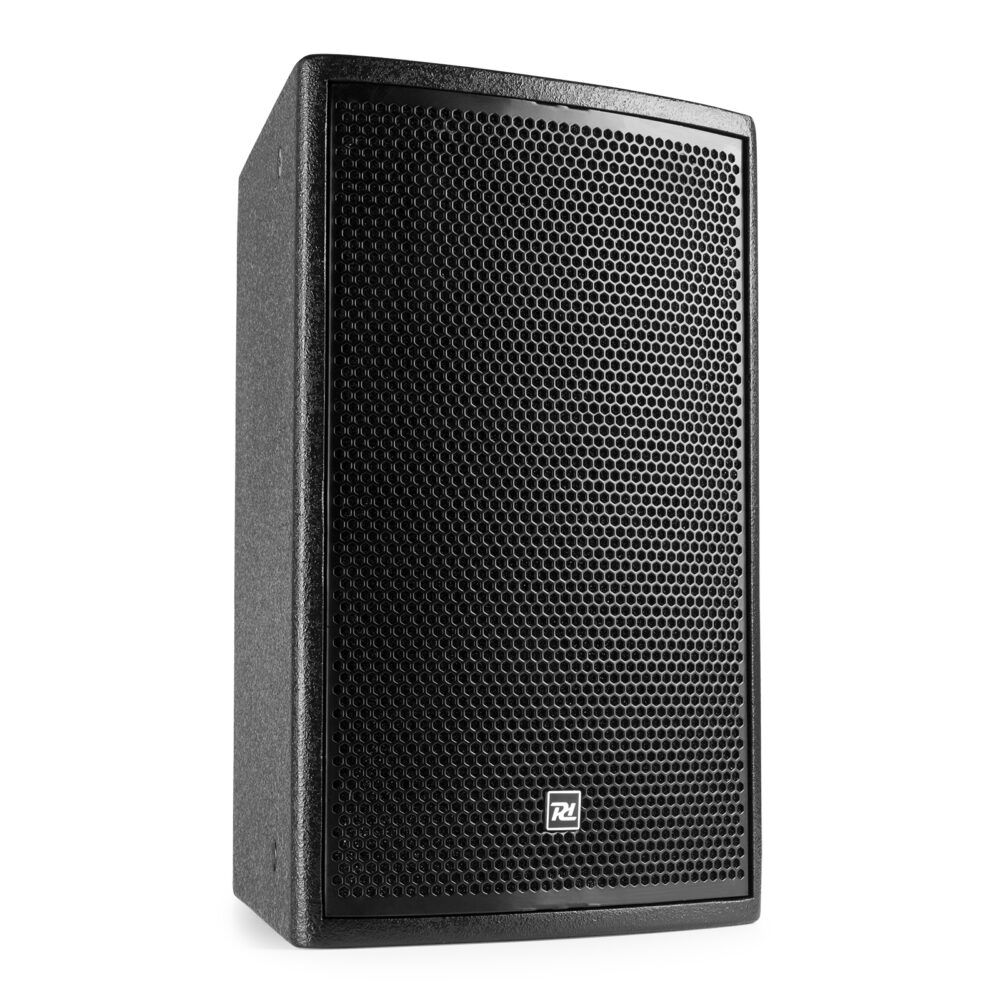

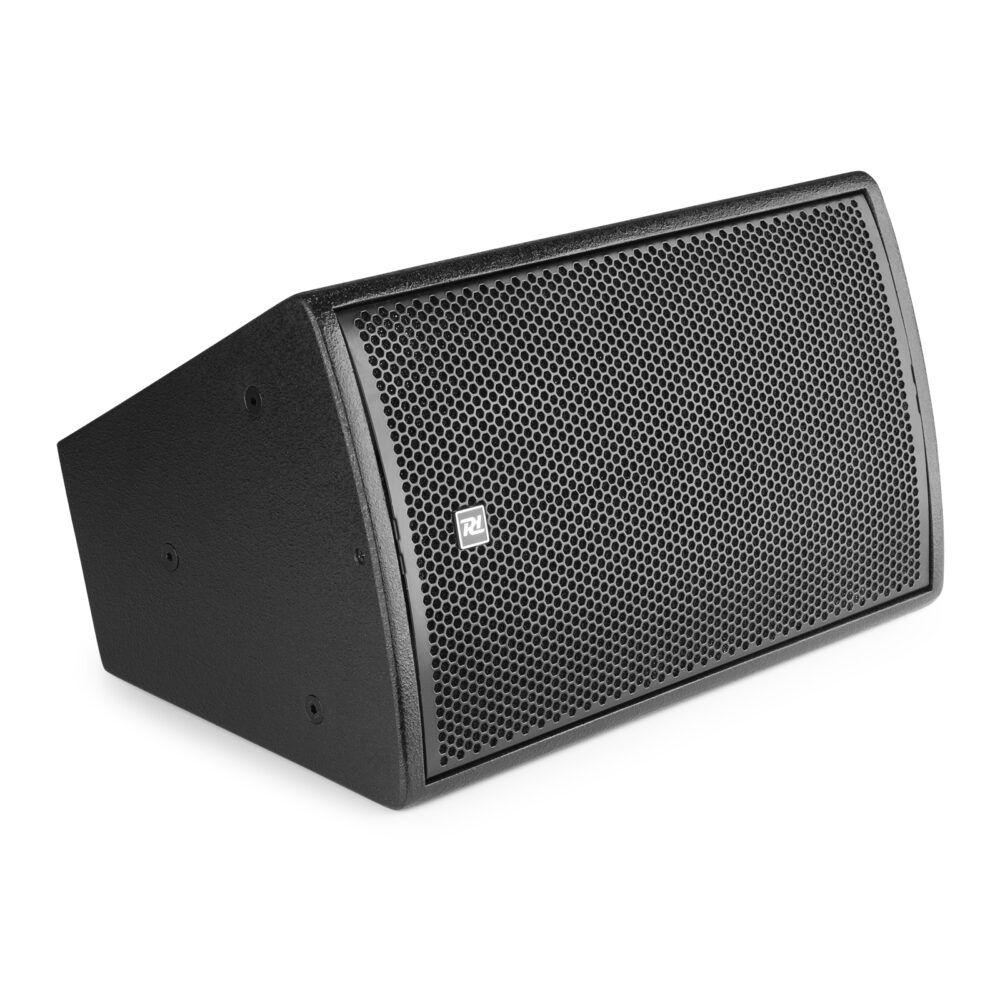

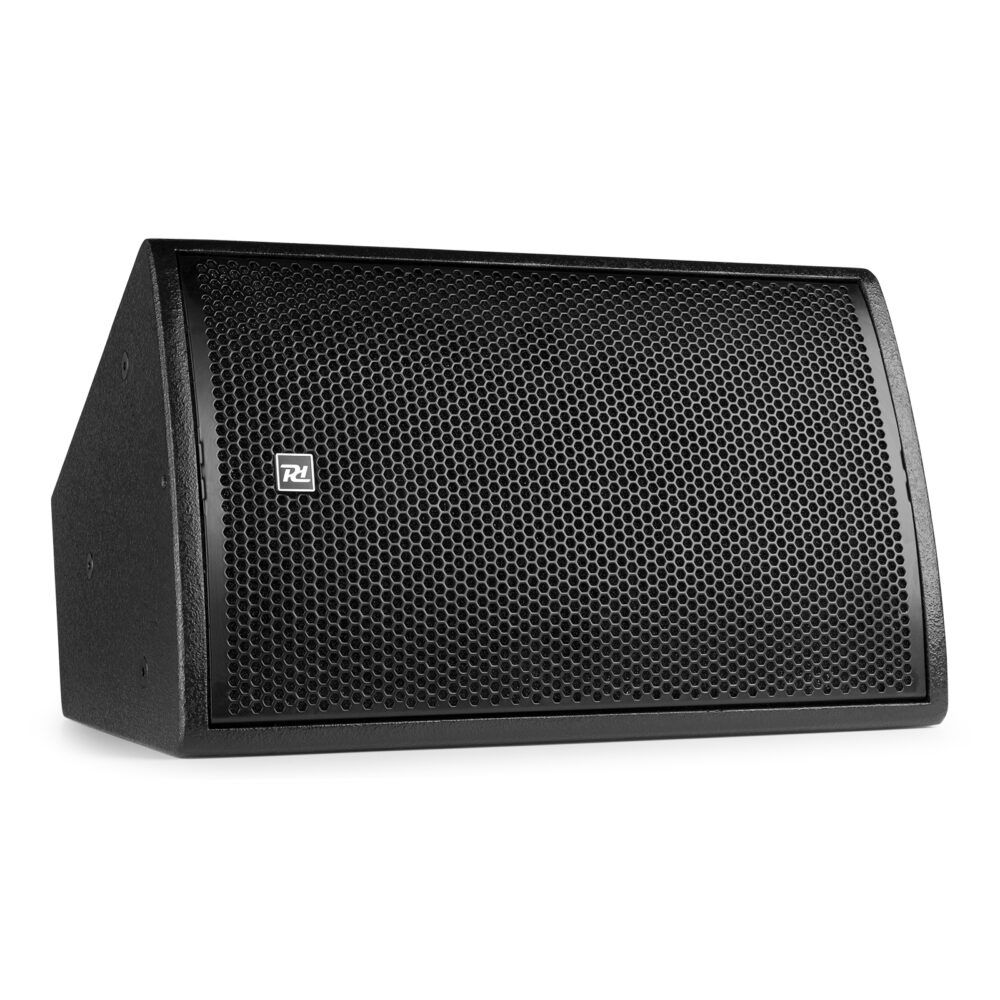

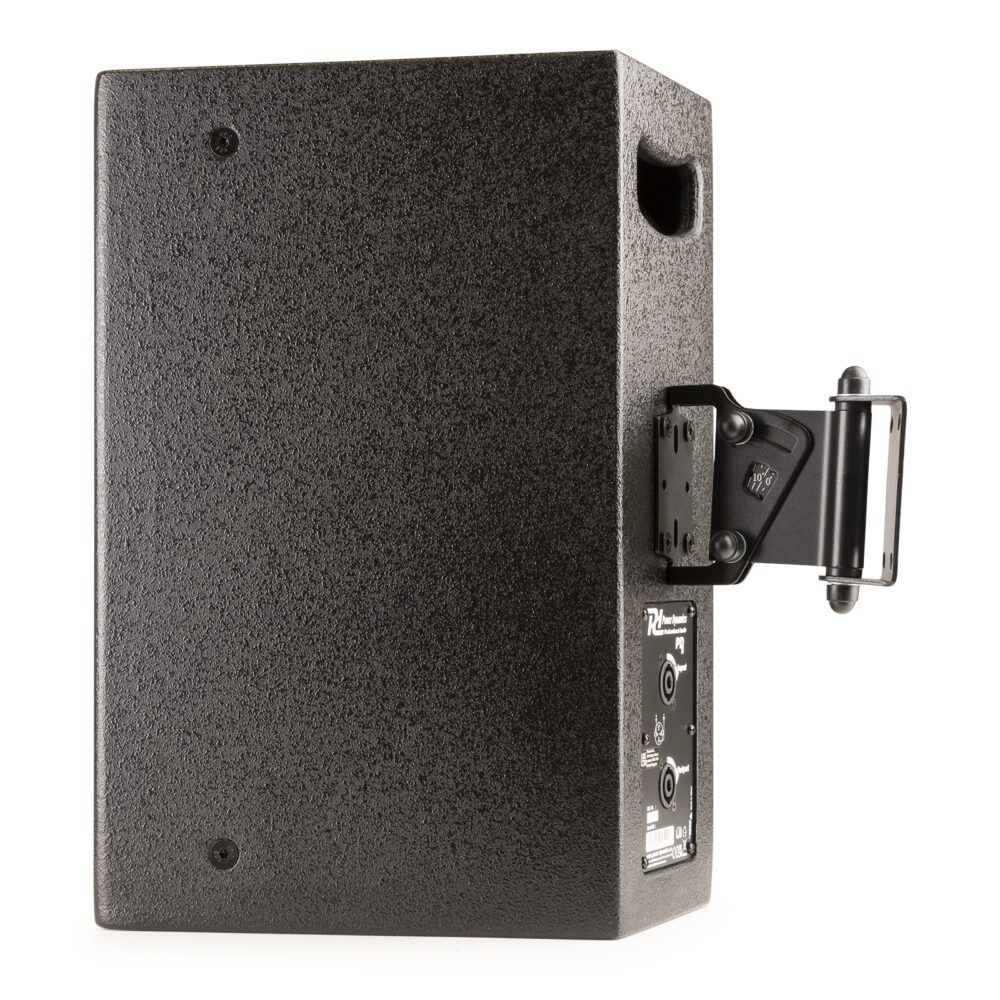

Power Dynamics PDW8B Passive 8″ Speaker
Key Features:
- Passive 2-way bass-reflex speaker
- Internal passive crossover filter
- Plywood cabinet with professional black textured finish

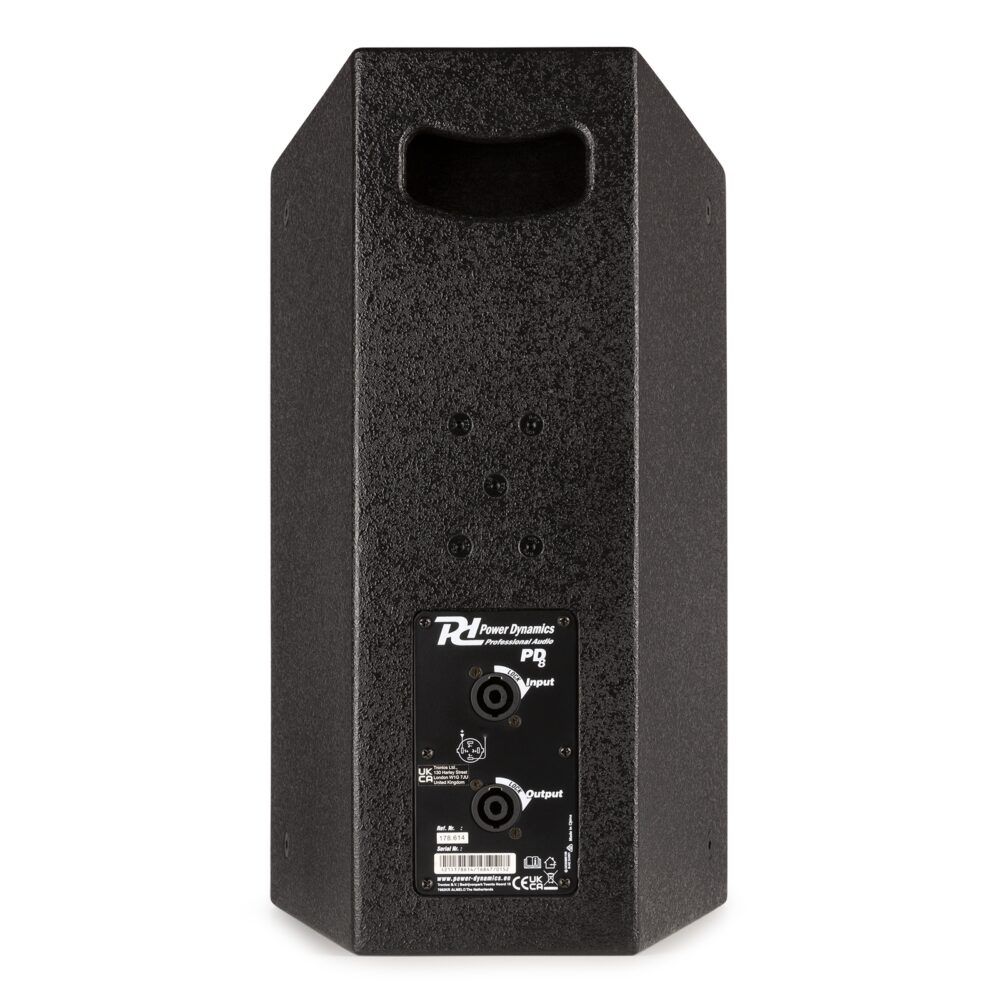

- NL4 Connection and screw terminal
- Integrated suspension points

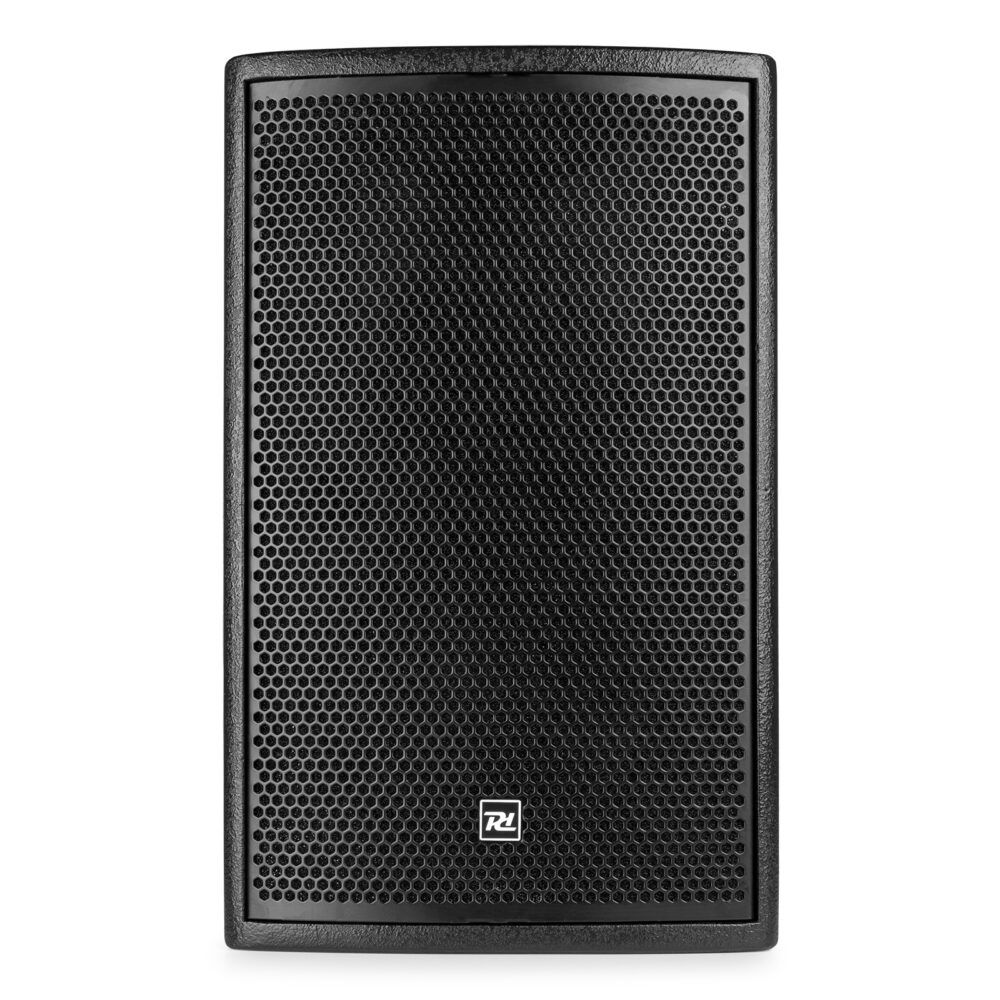

- Robust metal grille

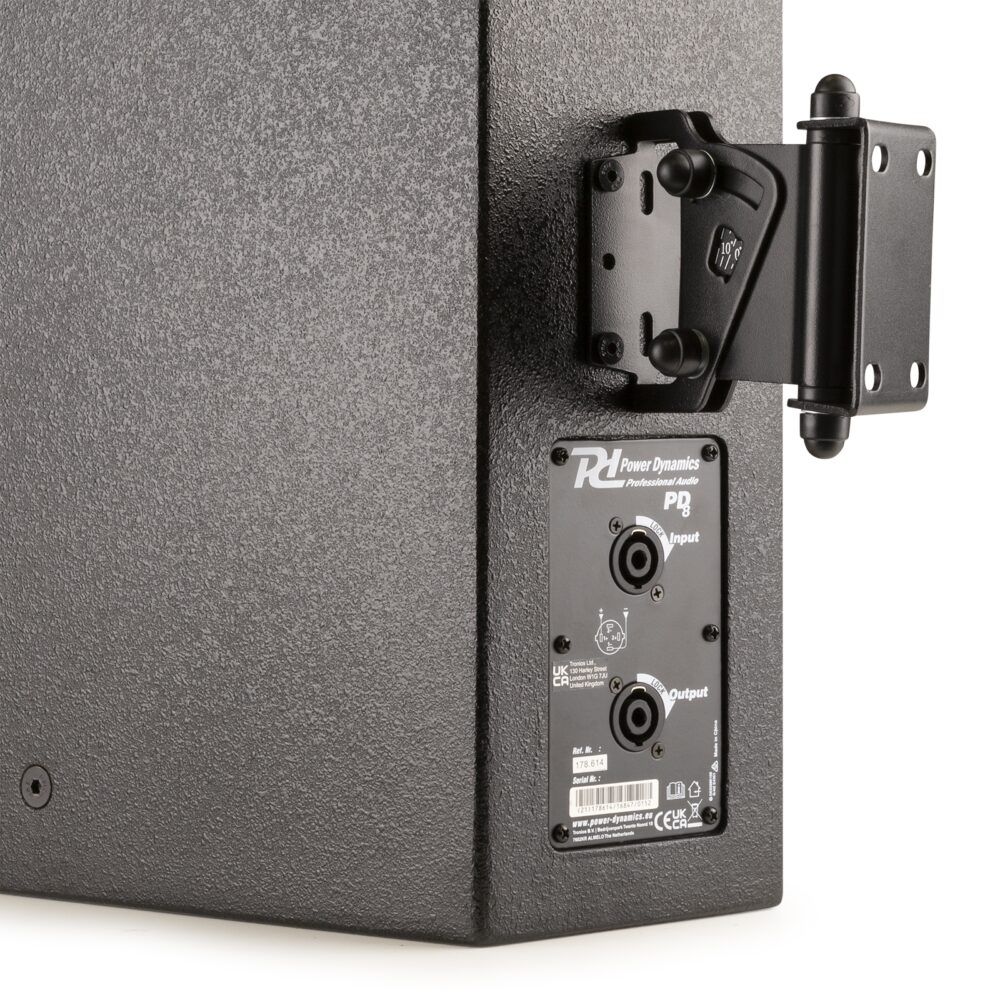

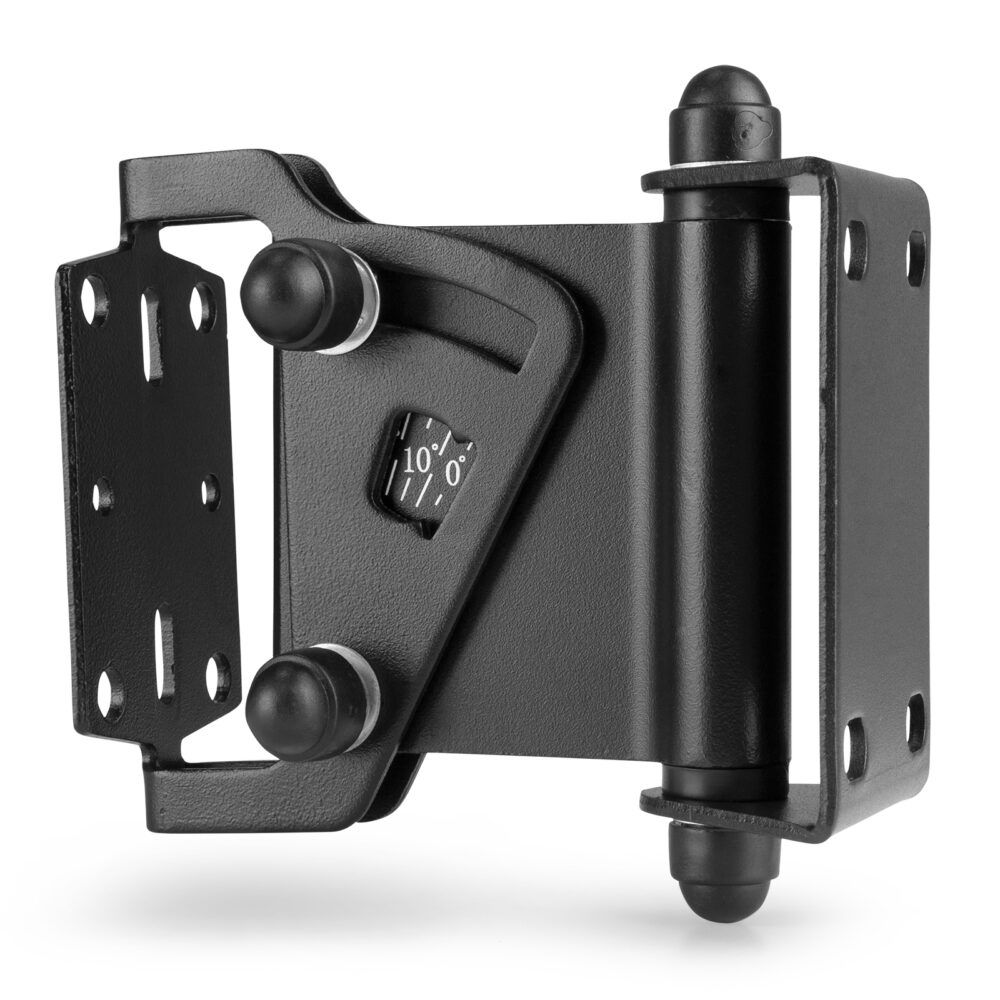

- Supplied per piece with mounting bracket
Technical Data
| Speaker type | Passive (non-amplified) |
|---|---|
| Product colour | Black |
| Output power: Max | 300W |
| Output power: RMS | 150W |
| Tweeter type | Titanium Compression Driver |
| Diameter tweeter | 1″ |
| Diameter woofer | 8″ |
| Magnet type | Ferrite |
| Impedance | 8 Ohm |
| Frequency response | 80 Hz – 20.000 Hz |
| SPL @ 1W/1m | 92dB |
| SPL max | 116dB |
| IP rating | IP20 |
| Rigging Eye Thread | M8 |
| Dimensions (L x W x H) | 290 x 290 x 460mm |
| Weight | 8.85 kg |
| Included accessories | Mounting bracket |
